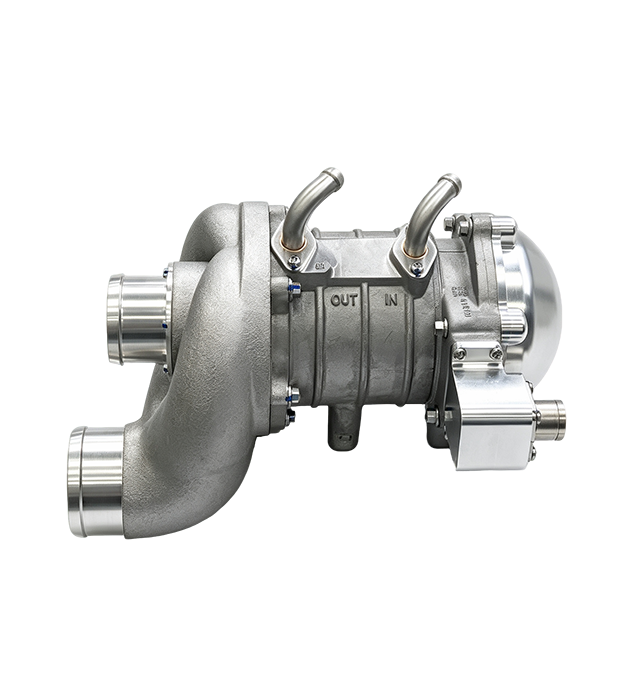

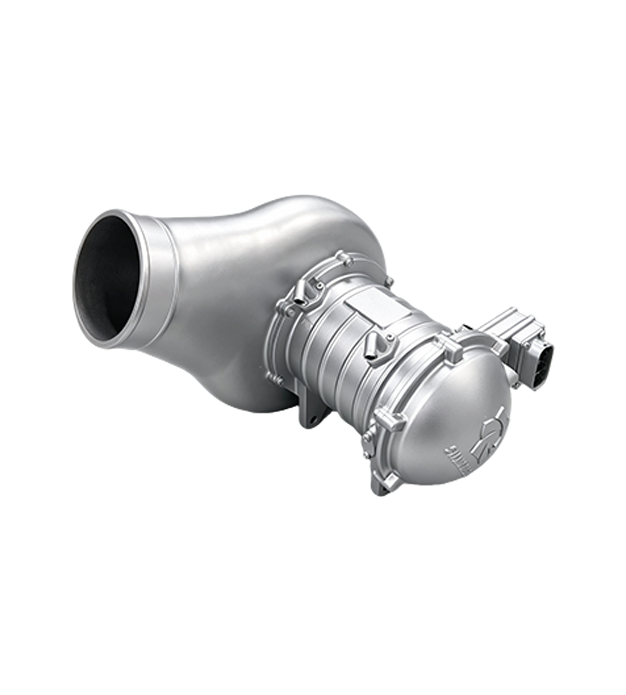

As an original product developed and applied first in the industry by SINOBROOK, the TG series turbo generators use a unique decoupling design to efficiently convert the excess pressure and waste heat from the fuel cell exhaust into electricity, significantly reducing system parasitic power loss, improving power generation efficiency in stationary power plants, and extending the driving range of heavy trucks.
额定功率：10kW
最大流量：180(~500Max)g/s
额定功率：50kW
最大流量：1200(~1500Max)g/s
-
Hydrogen Energy · Application Scenarios
Can be used in fixed hydrogen fuel cell power stations, hydrogen-powered heavy trucks, and other vehicle-mounted scenarios. It has already been applied to leading customers in the industry and received high recognition.
-
Efficient · Significant Energy Saving
Uses turbine energy recovery technology to effectively reduce parasitic power consumption of the air compressor. It can lower compressor energy use by 20%-30% and improve fuel cell system efficiency by 4%-6%.
-
Innovative · Decoupled Design
Features an original decoupled expander design, unlike traditional integrated structures, supporting decoupled purging, heating, and de-icing. It has stronger adaptability to high-altitude conditions and ensures stable and reliable operation even in complex environments.
-
Economical · Cost Reduction and Efficiency Improvement
There are many domestic and international energy storage thermal control cases, verifying the product strength with customer certifications. It is mainly used in containerized electrochemical energy storage and, beyond conventional land storage, can also be applied in electric ships, vehicle-mounted mobile storage, and other scenarios.
| 型号 | ITG10 | ITG50 |
| 类型 | 涡轮发电机 | 涡轮发电机 |
| 最高压比 | 2.0(~3.5Max) | 2.1(~3.5Max) |
| 最大流量（g/s） | 180(~500Max) | 1200(~1500Max) |
| 轴承类型 | 气浮轴承（无油） | 气浮轴承（无油） |
| 启停寿命（次数） | 250000 | 250000 |
| 总重量（kg） | ≤8.5 | ≤27 |
| 额定直流功耗（kW） | ≤15 | ≤45 |
| 高压工作电压（VDC） | 250~750 | 250~750 |
