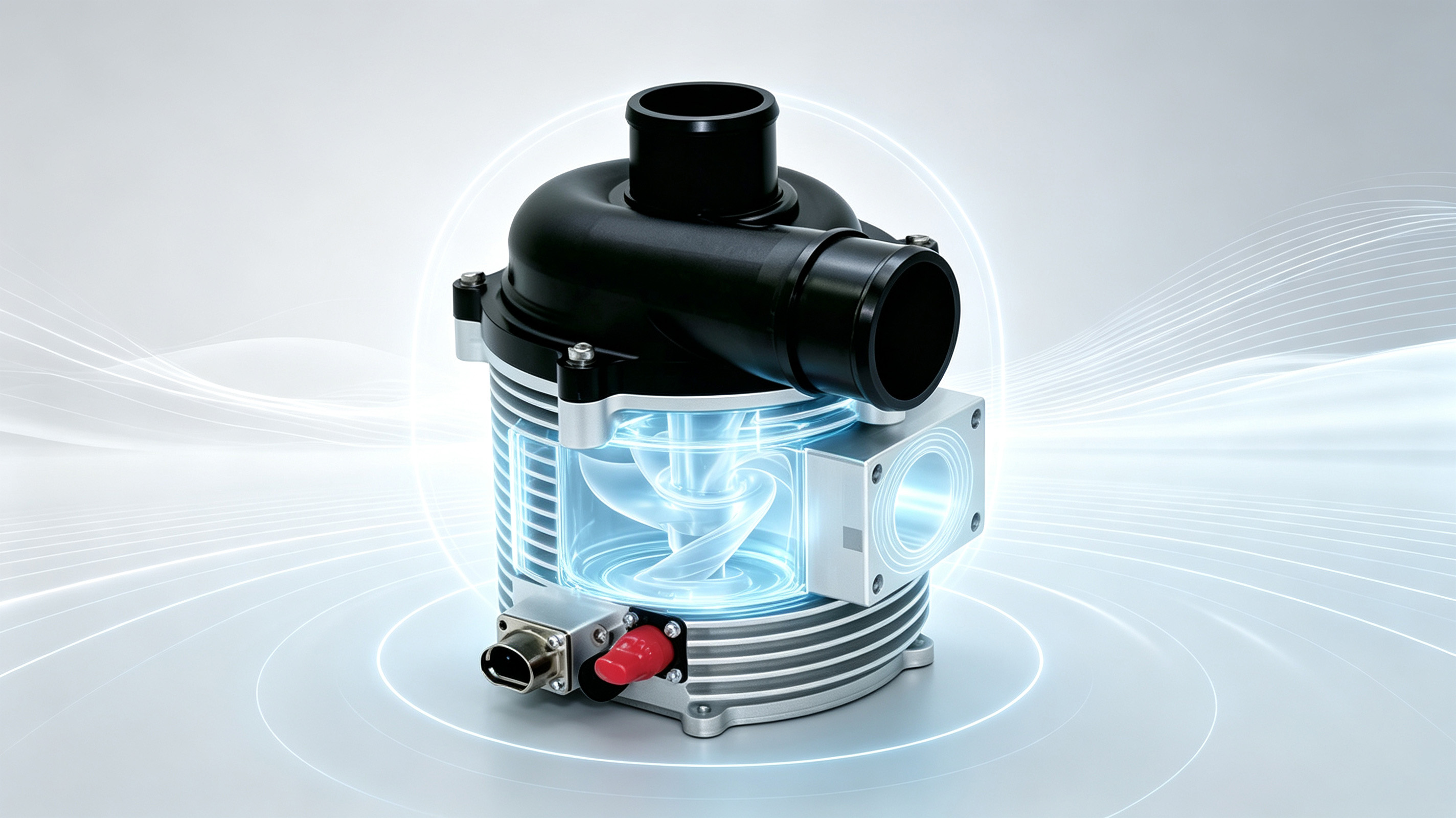

Specifically designed for efficient thermal management of battery systems,SINOBROOK high-voltage electronically shielded water pump achieves stable and reliable performance with a smaller size and lighter weight.

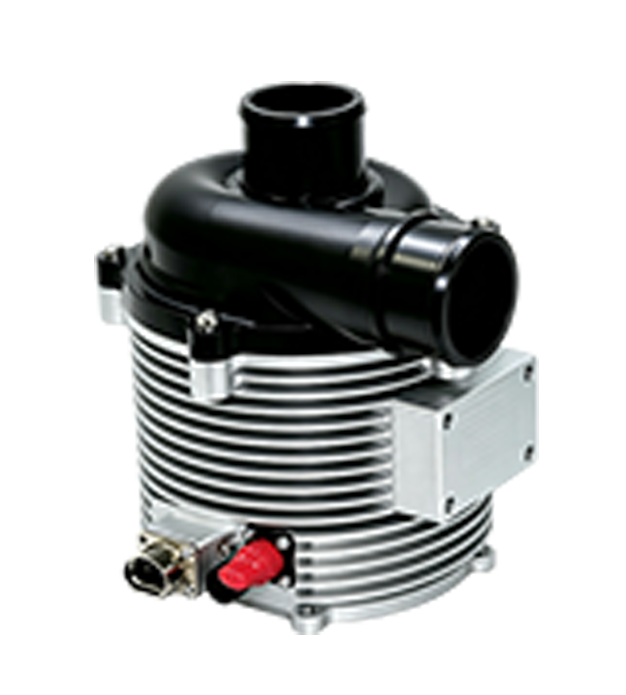

Rated power: 1.5 kW
Rated flow: 200 L/min

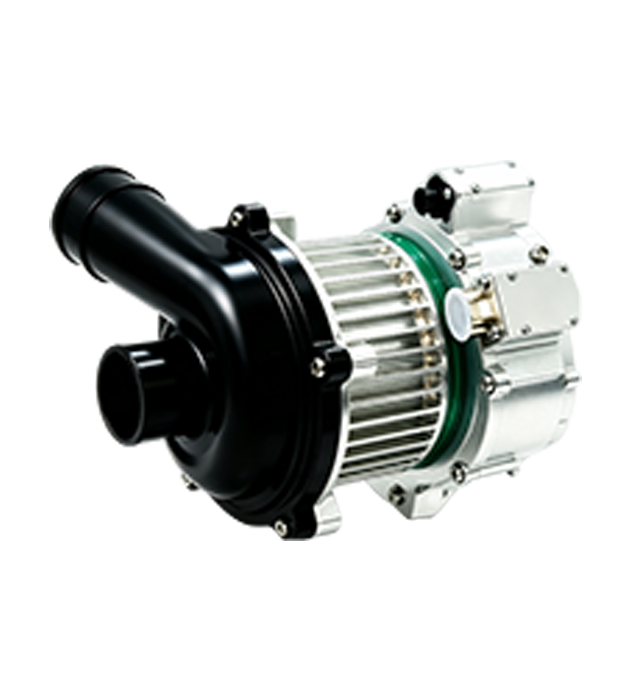

Rated power: 2.5 kW
Rated flow: 260~600 L/min
-
Applications · Numerous Scenarios
Multiple application scenarios, can be used for new energy commercial vehicles, energy storage thermal management, and other situations.
-
High Efficiency · Superior Performance
Using patented hydraulic design channels, the overall efficiency of the water pump reaches 62%, ensuring maximum fluid efficiency.
-
High Voltage · Direct Drive
Supports 400-850V DC high-voltage direct drive without the need for additional voltage reduction devices, simplifies system architecture, and improves overall energy conversion efficiency.
-

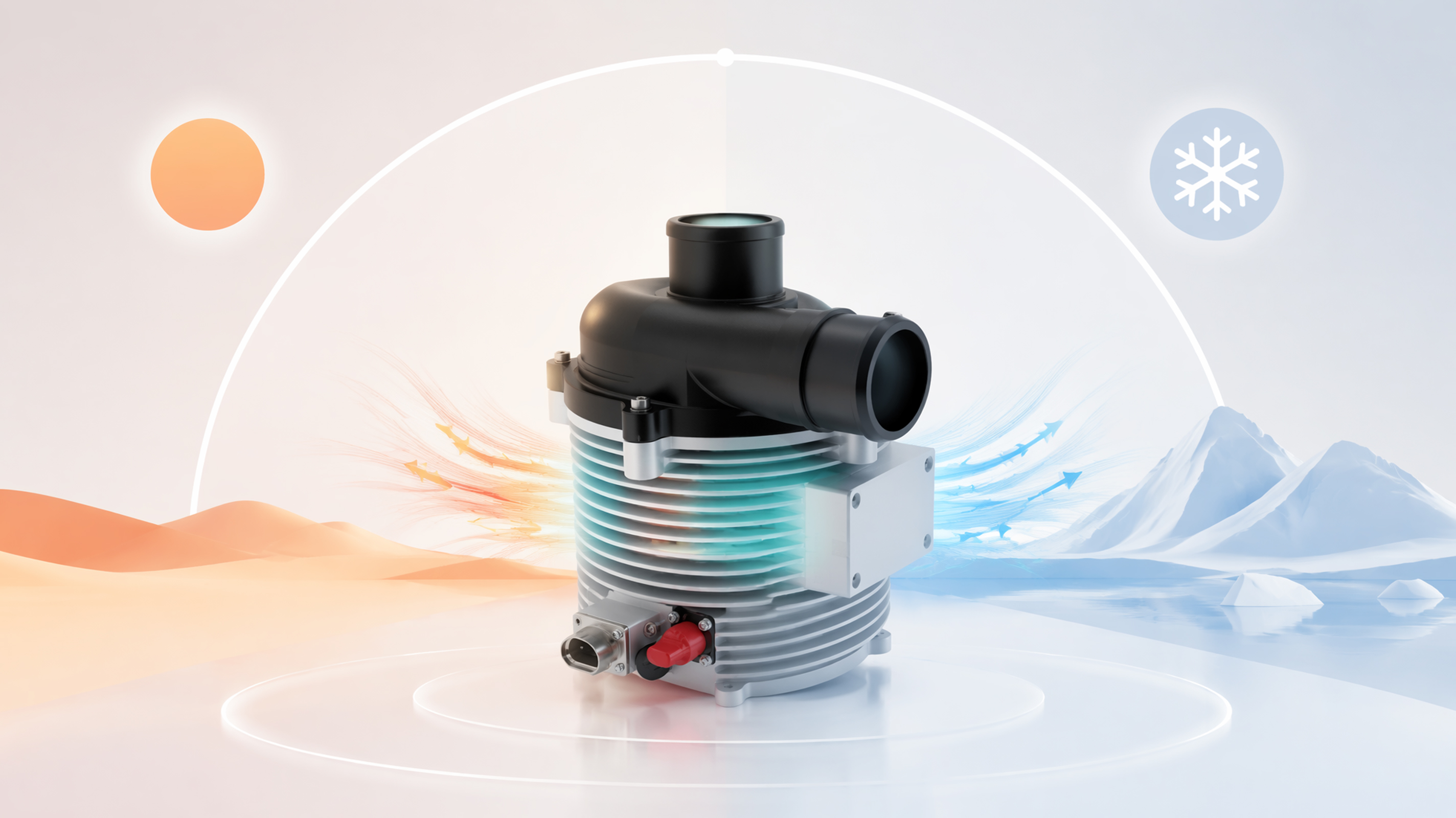

Reliable · A Foundation of Stability
Through the unique design of integrated cooling, the controller achieves efficient heat dissipation, ensuring the pump body operates stably and continuously in extreme high or low temperature environments.
| Para | EWP15 | EWP25 | EWP50 |
| Type | Shielding Pump | Shielding Pump | Shielding Pump |
| Power（kW） | 1.5 | 2.5 | 5.5 |
| Lift（M） | 21 | 16~28 | 22~40 |
| Flow（L/min） | 200 | 260~600 | 480~900 |
| Max Eff（%） | 62 | 62 | 62 |
| Protection Class | IP68 | IP68 | IP68 |
| High Voltage（VDC） | 400~850 | 400~850 | 400~850 |
| Low Voltage（VDC） | 9~36 | 9~36 | 9~36 |
| Communication | CAN 2.0 B | CAN 2.0 B | CAN 2.0 B |
| Temperature（℃） | -40~85 | -40~85 | -40~85 |
| Humidity（%） | 5~99 | 5~99 | 5~99 |
