Thermal Management for Data Center


Focusing on innovative air-floating centrifugal technology, we provide modern data centers with more efficient, reliable, and flexible thermal management solutions to ensure the stable operation and full lifecycle value of computing infrastructure.

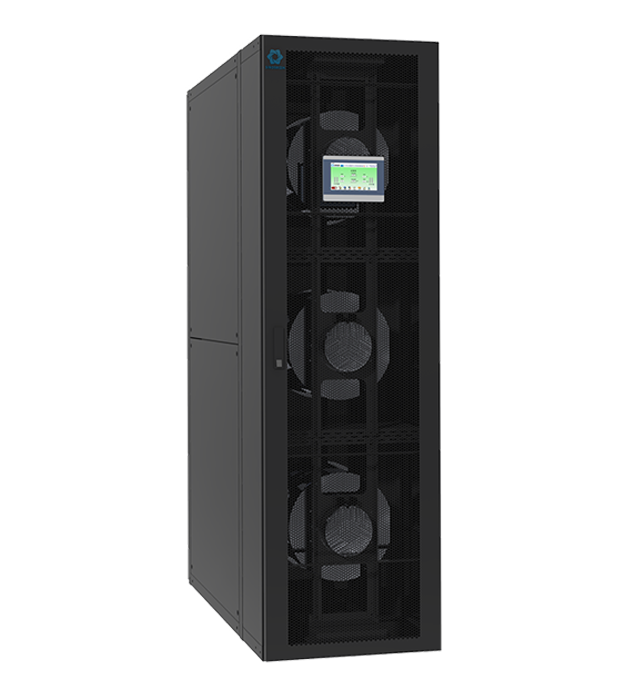

In-row Air Conditioner

Cooling capacity: 30.5/40.5/60.5 kW

HVEF50

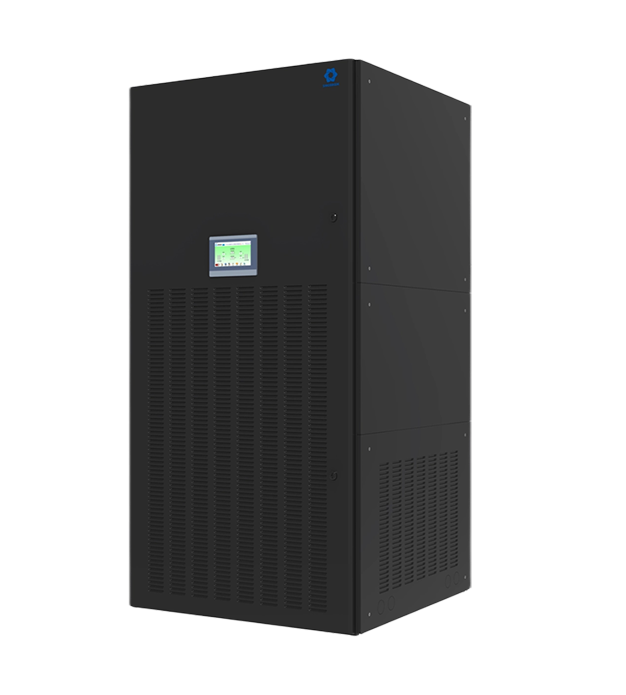

Room-level Air Conditioner

Cooling capacity: 40.5/50.5/60.5/81/101/121 kW

HVEF50
极致能效,硬核保障

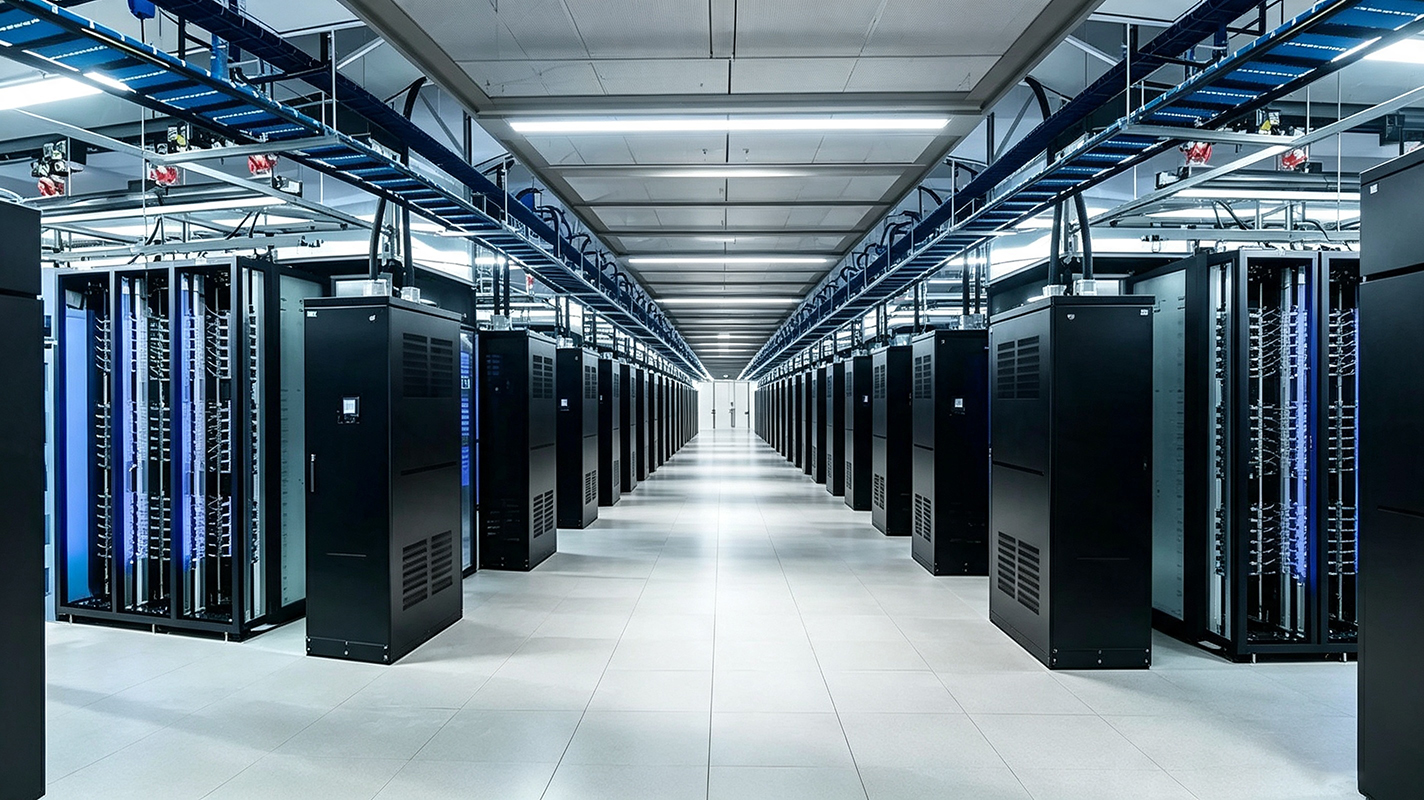

  • Applications · Data Centers

    · Row-level - Placed close to high-density server cabinets to solve local hotspots, making it an ideal choice for green and energy-efficient data centers and various electronic equipment rooms.
    · Room-level - Used in data centers, machine rooms, and power distribution rooms, where underfloor airflow combined with enclosed pathways raises return air temperature and lowers the room's PUE.

  • Energy Efficiency · Ultimate Breakthrough

    By adopting two-stage centrifugal compression, air bearing ‘zero friction’ and intelligent air replenishment and enthalpy increase technology, combined with full frequency control and integrated fluorine pump, the system's energy efficiency has been greatly improved, and the annual operating energy consumption has been significantly reduced.

  • Stability · Hardcore Protection

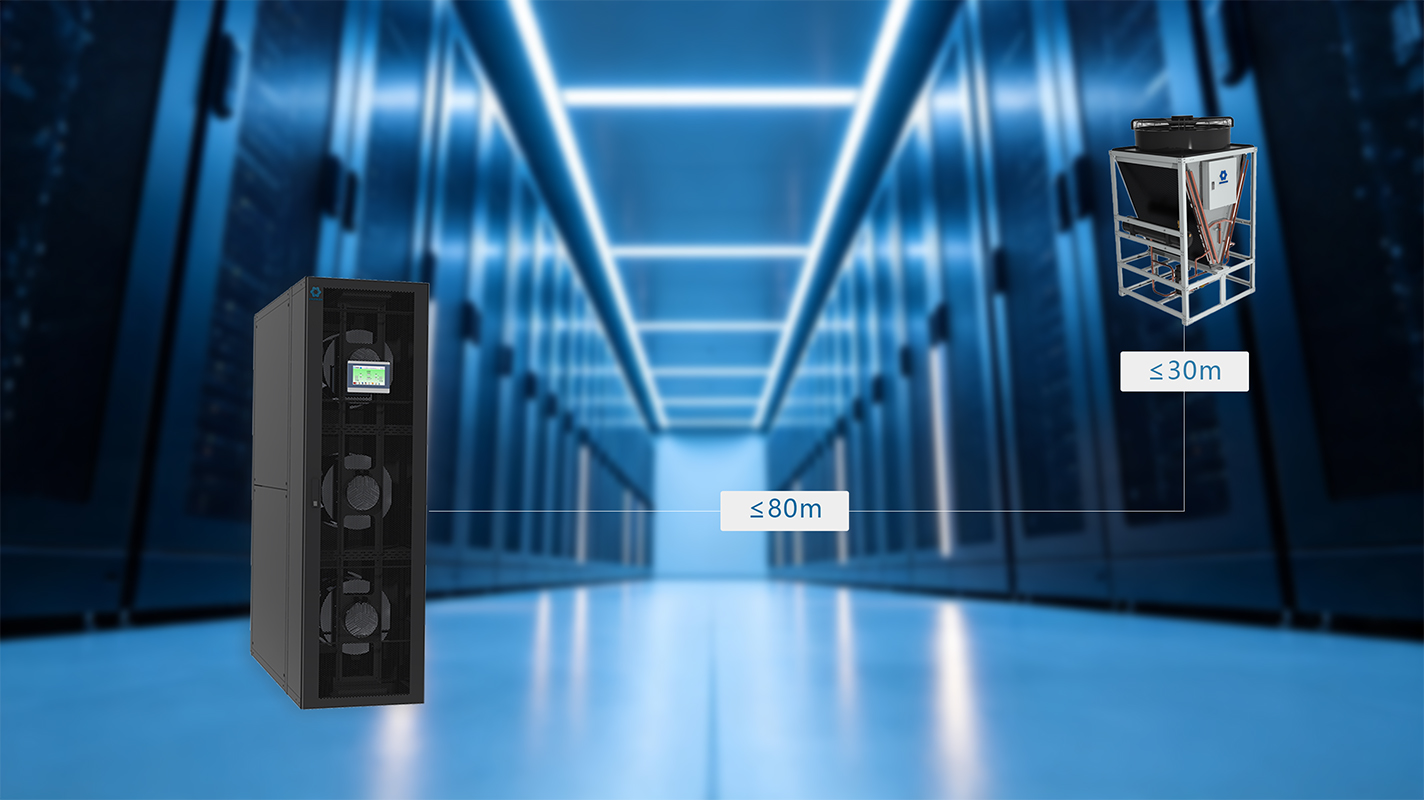

    The oil-free system completely eliminates the risk of oil circuit failures, operates stably in a wide temperature range (-35 ℃~45 ℃), and supports long-distance transportation up to 80 meters; Intelligent modular control ensures continuous and stable output of the system under different loads.

  • Flexibility · Expand on Demand

    The compact design significantly reduces the footprint, supports modular on-demand expansion and 15 meter drop deployment, making it easy to cope with future business growth and complex data center environments.

Product Parameters
Para DTMS-CR030 DTMS-CR040 DTMS-CR060 DTMS-CM040 DTMS-CM050 DTMS-CM060 DTMS-CM080 DTMS-CM100 DTMS-CM120
Type of cooling Air cooling Air cooling Air cooling Air cooling Air cooling Air cooling Air cooling Air cooling Air cooling
Inlet and Outlet Mode Up Air Supply or Down Air Supply Up Air Supply or Down Air Supply Up Air Supply or Down Air Supply Supply air from above or below Supply air from above or below Supply air from above or below Supply air from above or below Supply air from above or below Supply air from above or below
Size(WxLxH)(mm) 300×1200×2000 600×1200×2000 600×1200×2000 1000×1000×2000 1200×1000×2000 1200×1000×2000 2000×1000×2000 2400×1000×2000 2400×1000×2000
Circulating Air Volume(m³/h) 6000 9500 12500 9500 11500 12500 19000 23000 25000
Total Cooling Capacity(kW) 30.5 40.5 60.5 40.5 50.5 60.5 81 101 121
Heating Capacity(kW) 3 6 6 6 9 9 12 12 12
Humidification Amount(kg/h) 1 3 3 8 8 8 8 8 8
Product Parameters
Para DTMS-VF044 DTMS-VF078 DTMS-VF088 DTMS-VF044 DTMS-VF078 DTMS-VF088
Structure V-shaped centralized outdoor unit V-shaped centralized outdoor unit V-shaped centralized outdoor unit V-shaped centralized outdoor unit V-shaped centralized outdoor unit V-shaped centralized outdoor unit
Size(WxLxH)(mm) 1085×1085×1870 1085×1085×1954 1085×1335×1954 1085×1085×1870 1085×1085×1954 1085×1335×1954
Weight(kg) 185 226 248 185 226 248
Number of Fans(pcs) 1 1 1 1 1 1
Fluorine Pump Power(W) 550 550 550 550 550 550
Power Source 380/3ph/50Hz/AC,±10% 380/3ph/50Hz/AC,±10% 380/3ph/50Hz/AC,±10% 380/3ph/50Hz/AC,±10% 380/3ph/50Hz/AC,±10% 380/3ph/50Hz/AC,±10%
Class of Protection IPX5 IPX5 IPX5 IPX5 IPX5 IPX5
