In the field of industrial energy saving (such as energy storage systems and data centers), ensure the stability and energy efficiency of systems during long-term continuous operation; in the field of high-speed power (such as new energy vehicles and low-altitude aircraft), meet rapid response and reliable thermal management under high dynamic conditions with lightweight and compact design.

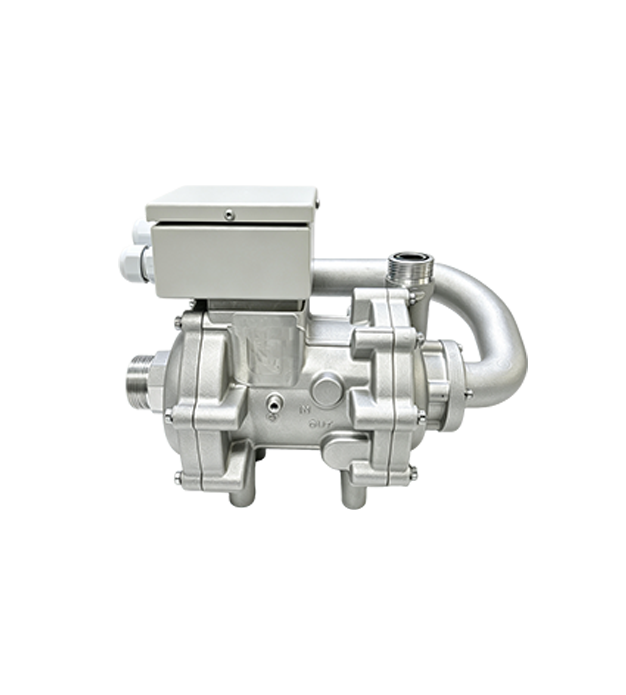

Rated cooling capacity: 60/80/100/120 kW
COP: 5.09/5.33/5.41/5.49
Refrigerant type: R134a/R513A

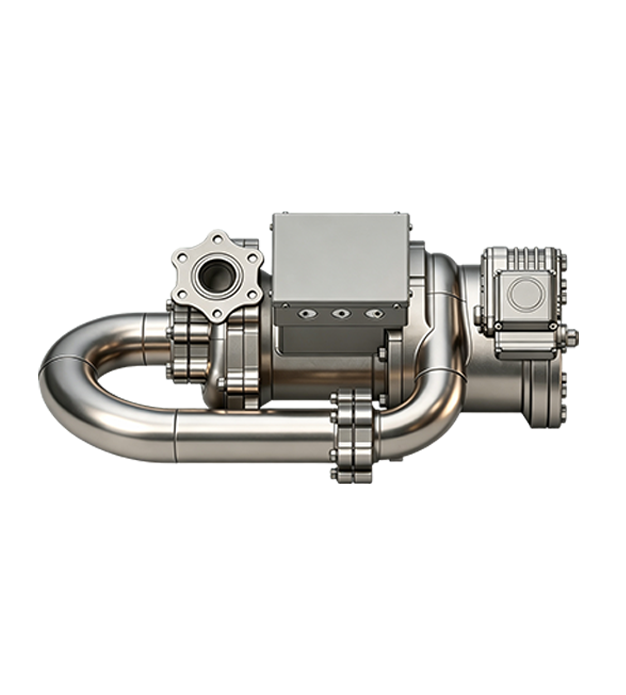

Rated cooling capacity: 360kW
COP: 6.1
Refrigerant type: R134a/R513A
-
Compatible · Multiple Applications
It can be widely used in energy storage, data centers, commercial buildings, factories, process cooling, industrial heat pumps, and other industrial and commercial fields, as well as in the new energy vehicle sector.
-

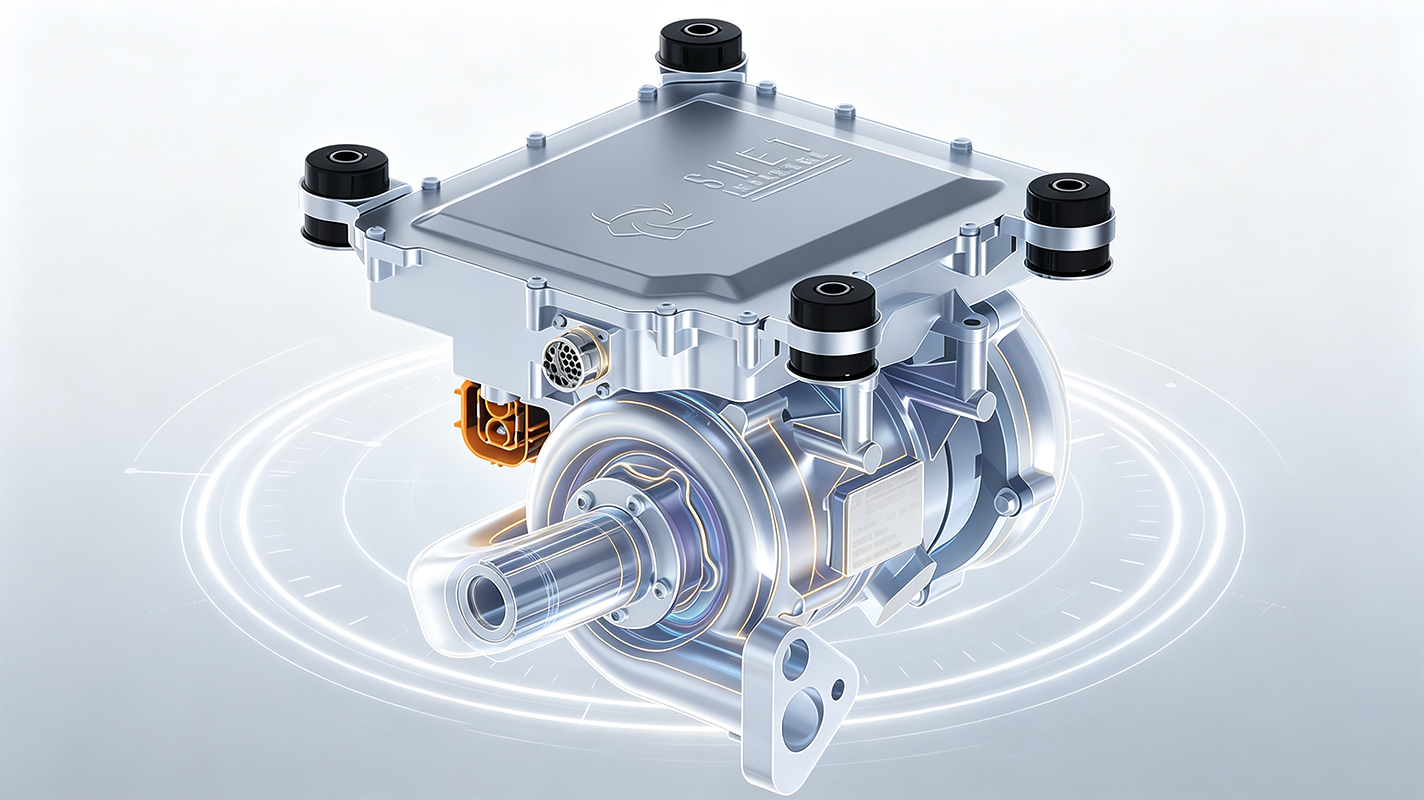

High Speed · Ultimate Power
The air suspension technology supports a maximum speed of 150000 revolutions per minute, providing the system with fast and powerful power response to meet various demanding requirements from vehicles to industrial equipment.
-

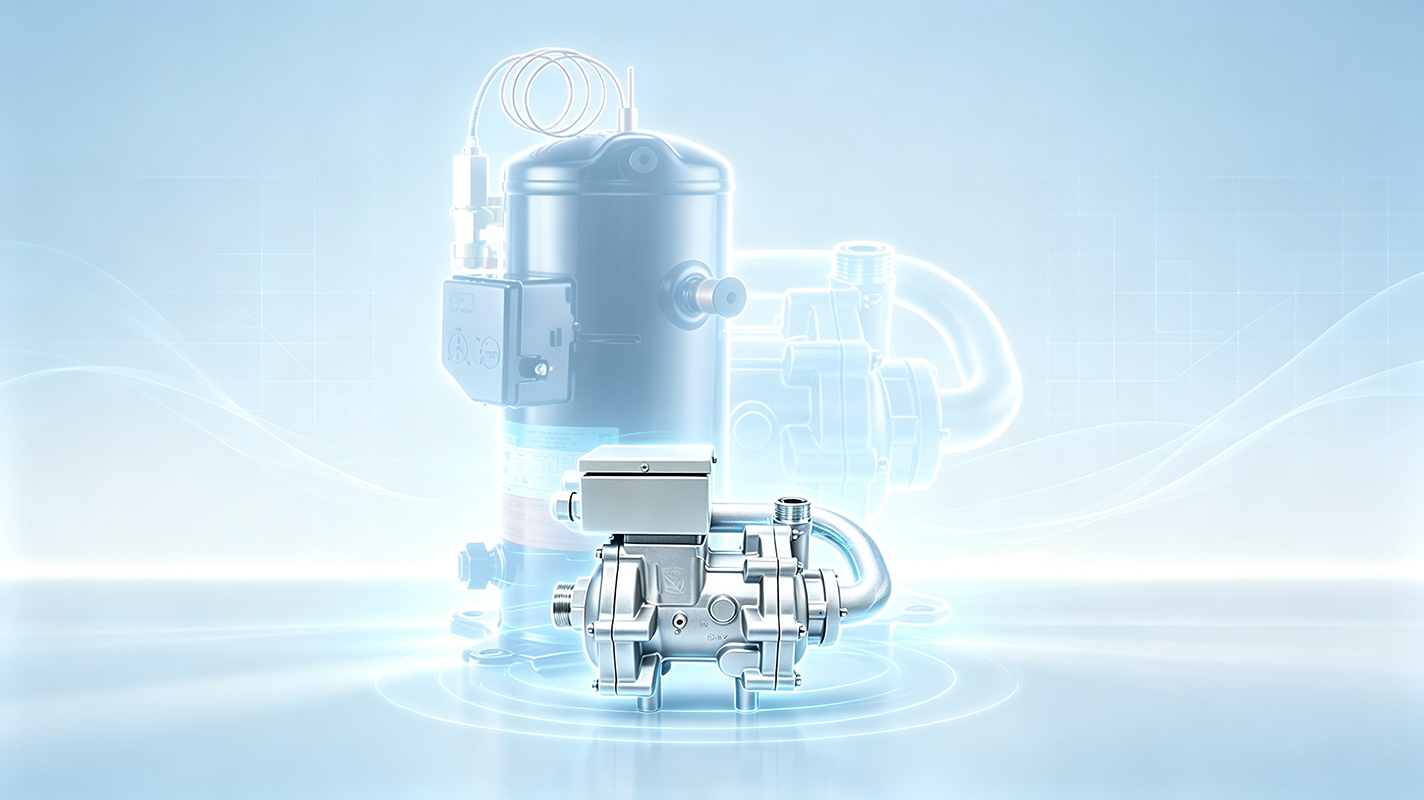

Compact · Lightweight Integration
The deeply optimized structural design reduces the volume and weight of the series products by up to 40% and 35% compared to traditional solutions, freeing up valuable space for equipment layout.
-

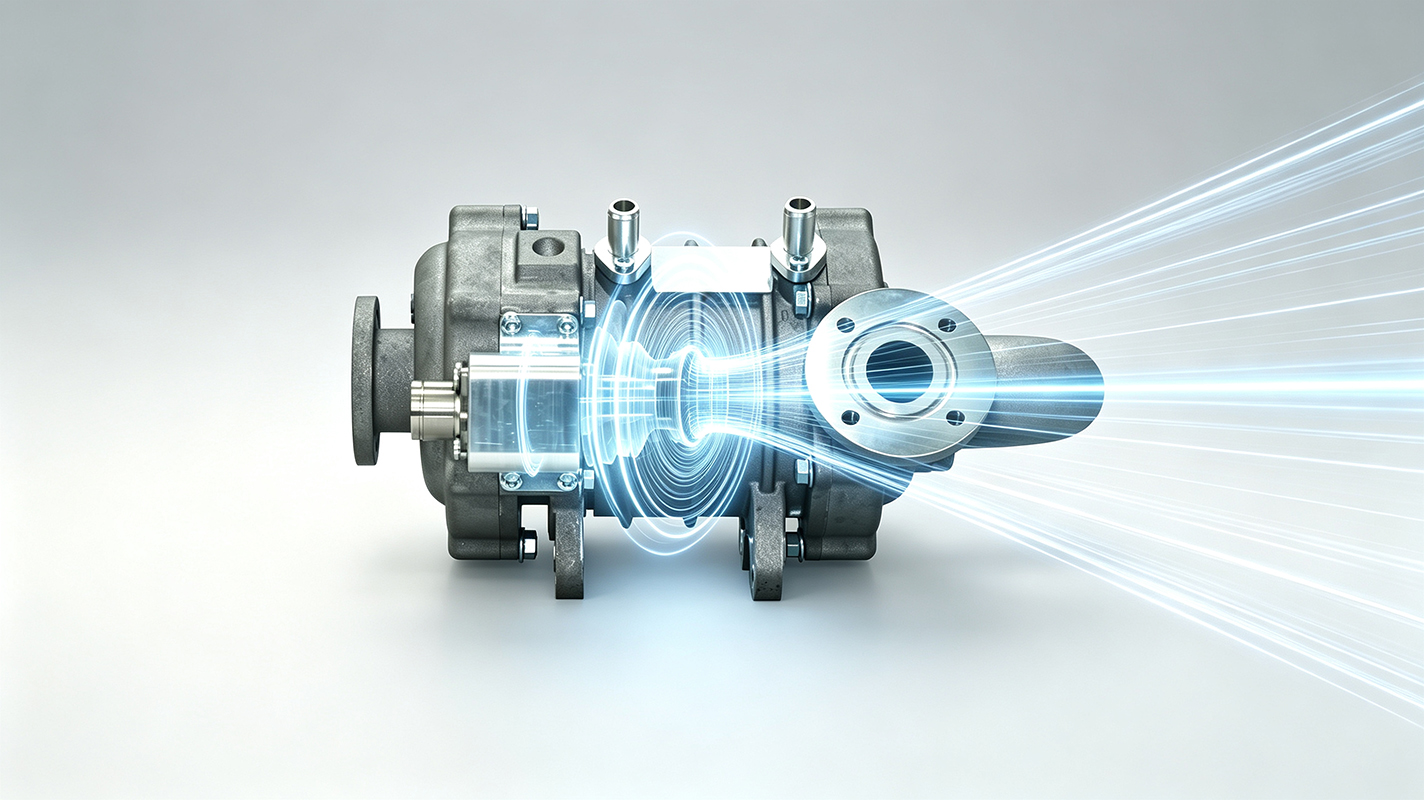

Reliable · Extended Longevity
The core components are made of specialized wear-resistant materials, achieving a start stop life of up to 500000 cycles and low maintenance requirements, ensuring stable operation of the system in various environments and creating long-term value.
| Para | ACC10 | ACC16G2-R3 | ACC16G2-R1 | ACC16G2-R2 | ACC16G2-R4 | ACC50 | ACC350 |
| Rated Capacity(kW) | 40 | 60 | 80 | 100 | 120 | 260 | 350 |
| Rated Power(kW) | 8.51 | 11.8 | 15 | 18.5 | 21.9 | 44.7 | 57.4 |
| COP | 4.7 | 5.09 | 5.33 | 5.41 | 5.49 | 5.86 | 6.1 |
| Refrigerant | R134a/R513A | R134a/R513A | R134a/R513A | R134a/R513A | R134a/R513A | R134a/R513A | R134a/R513A |
| Max Speed(RPM) | 120000 | 92000 | 92000 | 92000 | 92000 | 75000 | 40000 |
| Weight(kg) | 7 | 15 | 15 | 15 | 15 | 41 | 60 |
| Size(mm) | 316*186*184 | 362*255*272 | 362*255*272 | 362*255*272 | 362*255*272 | 434*358*271 | 480*314*311 |
| Power(V) | AC:380/480 DC:400~800 |
AC:380/480 DC:400~800 |
AC:380/480 DC:400~800 |
AC:380/480 DC:400~800 |
AC:380/480 DC:400~800 |
AC:380/480 | AC:380/480 |
| Communication | CAN or RS485 | CAN or RS485 | CAN or RS485 | CAN or RS485 | CAN or RS485 | CAN or RS485 | CAN or RS485 |
| Type | Dual Stage Centrifugal Compressor | Dual Stage Centrifugal Compressor | Dual Stage Centrifugal Compressor | Dual Stage Centrifugal Compressor | Dual Stage Centrifugal Compressor | Dual Stage Centrifugal Compressor | Dual Stage Centrifugal Compressor |
| Motor Type | PMSM | PMSM | PMSM | PMSM | PMSM | PMSM | PMSM |
| Bearing Type | Gas Foil Bearing (Oil-free) | Gas Foil Bearing (Oil-free) | Gas Foil Bearing (Oil-free) | Gas Foil Bearing (Oil-free) | Gas Foil Bearing (Oil-free) | Gas Foil Bearing (Oil-free) | Gas Foil Bearing (Oil-free) |
| Start/Stop Cycles(times) | ＞250000 | ＞250000 | ＞250000 | ＞250000 | ＞250000 | ＞250000 | ＞250000 |
