SINOBROOK independently developed and manufactured ultra-high-speed motor and electronic control, with a system efficiency of up to 95%, a speed of up to 110,000 RPM, a high power-to-weight ratio, and an ultra-high speed control accuracy of 0.3%.

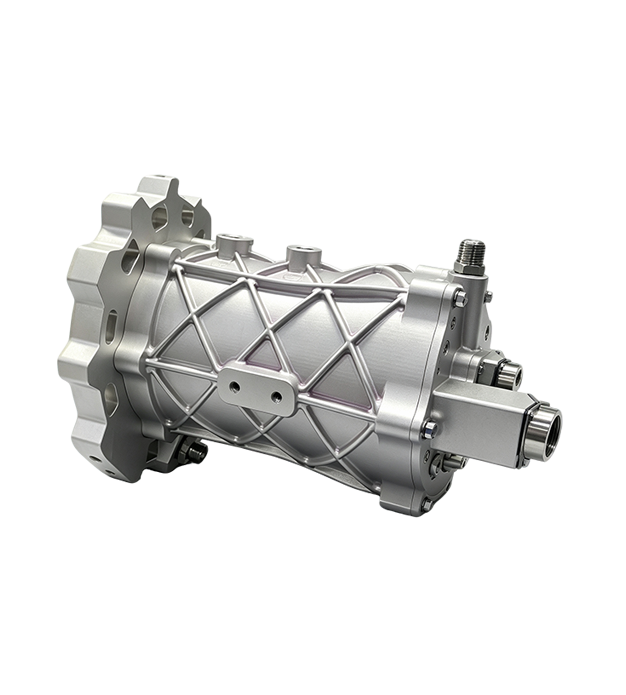

Rated power: 150kW
Rated speed: 60000 RPM

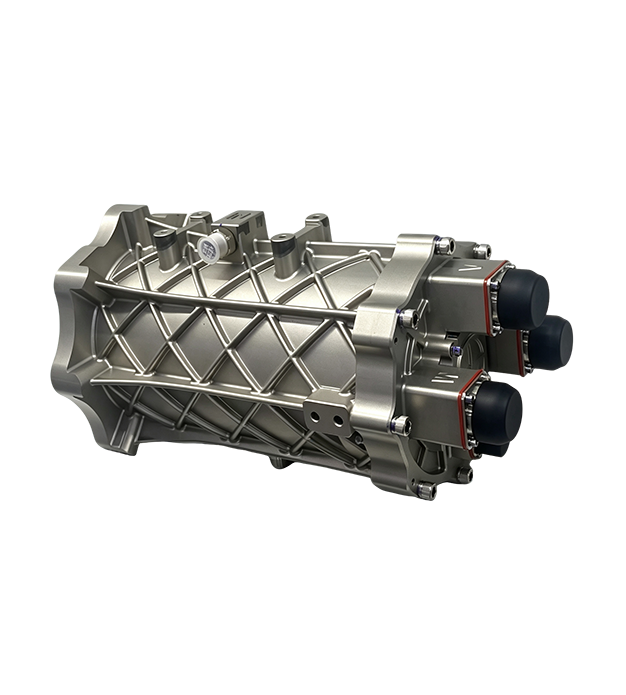

Rated power: 350kW
Rated speed: 40000 RPM
-
Applications · Multiple Scenarios
Power coverage ranges from 1kW to 400kW, forming a super high-speed motor and electric control product lineup, widely used in aerospace, special equipment, refrigeration, passenger cars, and commercial vehicles, meeting the needs of different scenarios.
-
Extreme speed and energy efficiency
The maximum speed of the motor reaches 110000 revolutions per minute, and the comprehensive efficiency of the system is as high as 95%, achieving ultra-high power density and compact structure; The speed control accuracy reaches 3 ‰, ensuring efficient collaboration.
-
Independent research and development, precise simulation
Based on a comprehensive electromagnetic and structural simulation system, the rotor dynamics and electromagnetic scheme are precisely optimized for tens of thousands of revolutions per minute to ensure stable operation and efficient conversion at ultra-high speeds.
-
Strict and reliable throughout the entire region
Following the development process of automotive/military regulations, we have undergone over a hundred motor and electronic control DVP tests, covering extreme working conditions such as -40 ℃ cold to high temperature and high load. We have a 100000 RPM high-speed towing platform to ensure stability and reliability in harsh environments.
| Para | UM04 | UM25 | UM50 | UM70 | UM100 | UM150 | UM200 | UM260 | UM300 | UM350 | UM400 |
| Type | PMSM | PMSM | PMSM | PMSM | PMSM | PMSM | PMSM | PMSM | PMSM | PMSM | PMSM |
| Peak Power（kW） | 4.5 | 48 | 100 | 150 | 150 | 225 | 300 | 390 | 450 | 525 | 600 |
| Rated Power（kW） | 4 | 24 | 50 | 75 | 100 | 150 | 200 | 260 | 300 | 350 | 400 |
| Max Speed（RPM） | 88000 | 115000 | 65000 | 65000 | 65000 | 65000 | 65000 | 60000 | 45000 | 45000 | 45000 |
| Rated Speed（RPM） | 80000 | 100000 | 60000 | 60000 | 60000 | 60000 | 60000 | 55000 | 40000 | 40000 | 40000 |
| Voltage Range（VDC） | 48-96 | 250-800 | 250-800 | 250-800 | 400-900 | 400-900 | 400-900 | 400-900 | 400-900 | 400-900 | 400-900 |
| Rated Voltage（VDC） | 48/80 | 270/540 | 270/540 | 270/540 | 540/800 | 540/800 | 540/800 | 540/800 | 540/800 | 540/800 | 540/800 |
| Max Eff | 0.96 | 0.96 | 0.96 | 0.96 | 0.96 | 0.965 | 0.965 | 0.965 | 0.965 | 0.97 | 0.97 |
| Cooling Type | water cooling | Oil cooling | Oil cooling | Oil cooling | Oil cooling | Oil cooling | Oil cooling | Oil cooling | Oil cooling | Oil cooling | Oil cooling |
| Cooling Flow（L/min） | ≥4 | ≥4 | ≥8 | ≥8 | ≥10 | ≥12 | ≥14 | ≥16 | ≥18 | ≥20 | ≥22 |
| Cooling Temperature（℃） | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 | ≤90 |
| Size(mm) | D120×L128 | D155×L183 | D175×L204 | D175×L219 | D175×L234 | D185×L280 | D185×L300 | D200×L327 | D200×L347 | D220×L337 | D220×L357 |
| Weight（kg） | ≤8 | ≤12 | ≤16 | ≤18 | ≤20 | ≤26 | ≤28 | ≤35 | ≤40 | ≤42 | ≤45 |
| NVH（dB） | ≤75 | ≤75 | ≤75 | ≤80 | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 |
| Protection Class | IP67 | IP67 | IP67 | / | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
| Temperature（℃） | -40~85 | -40~85 | -40~85 | -40~85 | -40~85 | -40~85 | -40~85 | -40~85 | -40~85 | -40~85 | -40~85 |
| Humidity（%） | 5~99 | 5~99 | 5~99 | 5~99 | 5~99 | 5~99 | 5~99 | 5~99 | 5~99 | 5~99 | 5~99 |
